3. Deployment Environment

The Deployment Environment section defines the cloud or platform environment where your workflow will run.

It allows you to connect to specific accounts or environments via Connectors, set environment variables, and link outputs or secrets dynamically across workflows.

This configuration ensures your workflow has the proper credentials and runtime settings to execute tasks on your target infrastructure (e.g., AWS, Azure, GCP, Kubernetes).

---

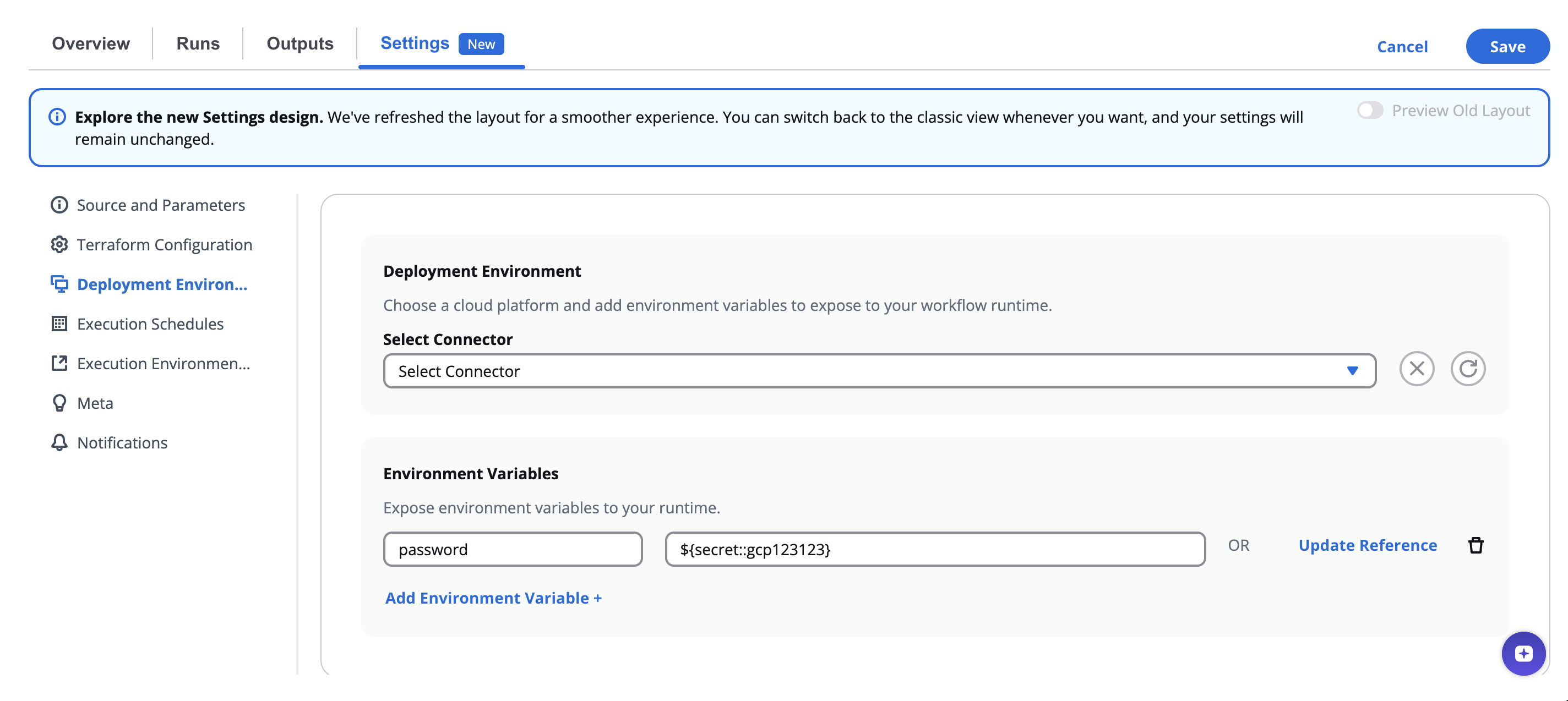

3.1 Overview

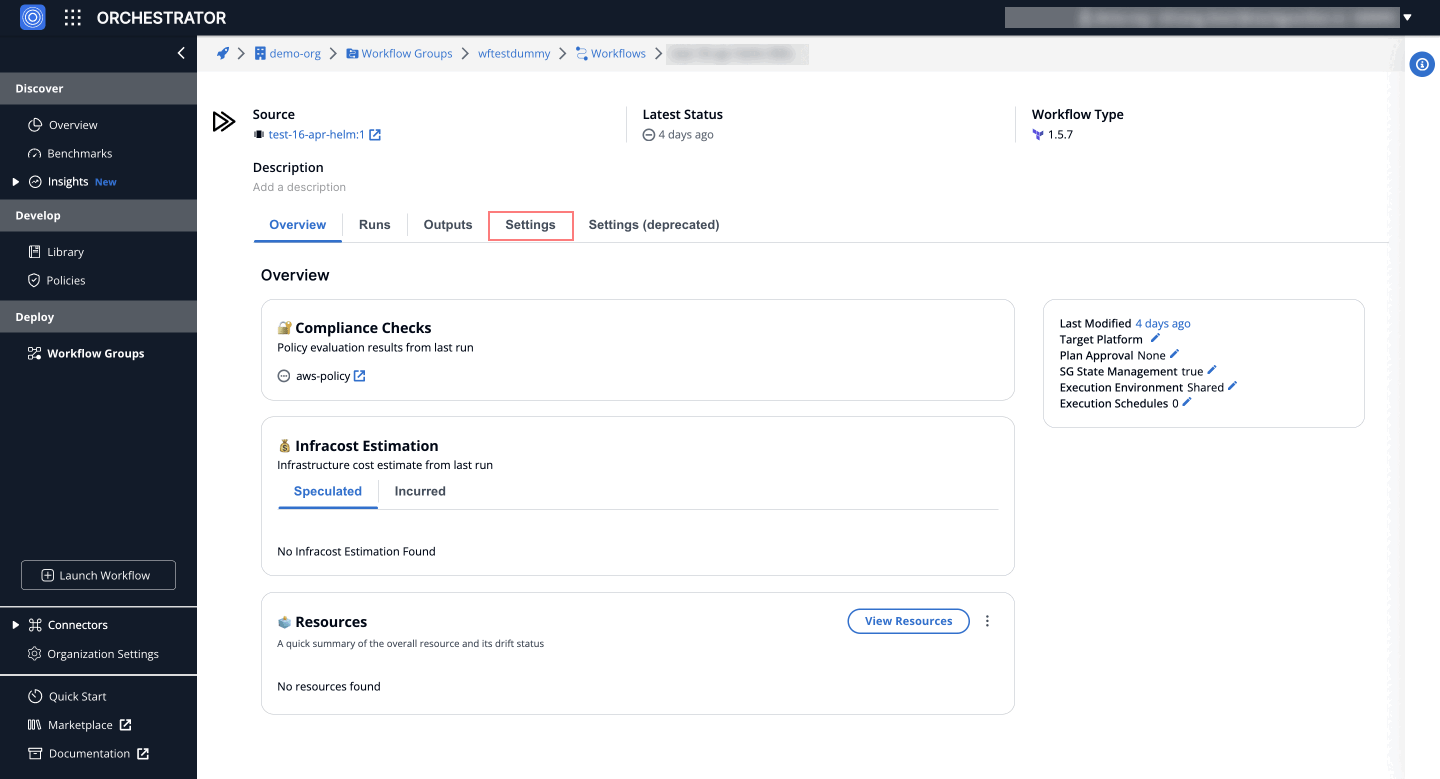

This section appears under Settings → Deployment Environment and consists of two main parts:

1. Connector Selection

2. Environment Variables Configuration



---

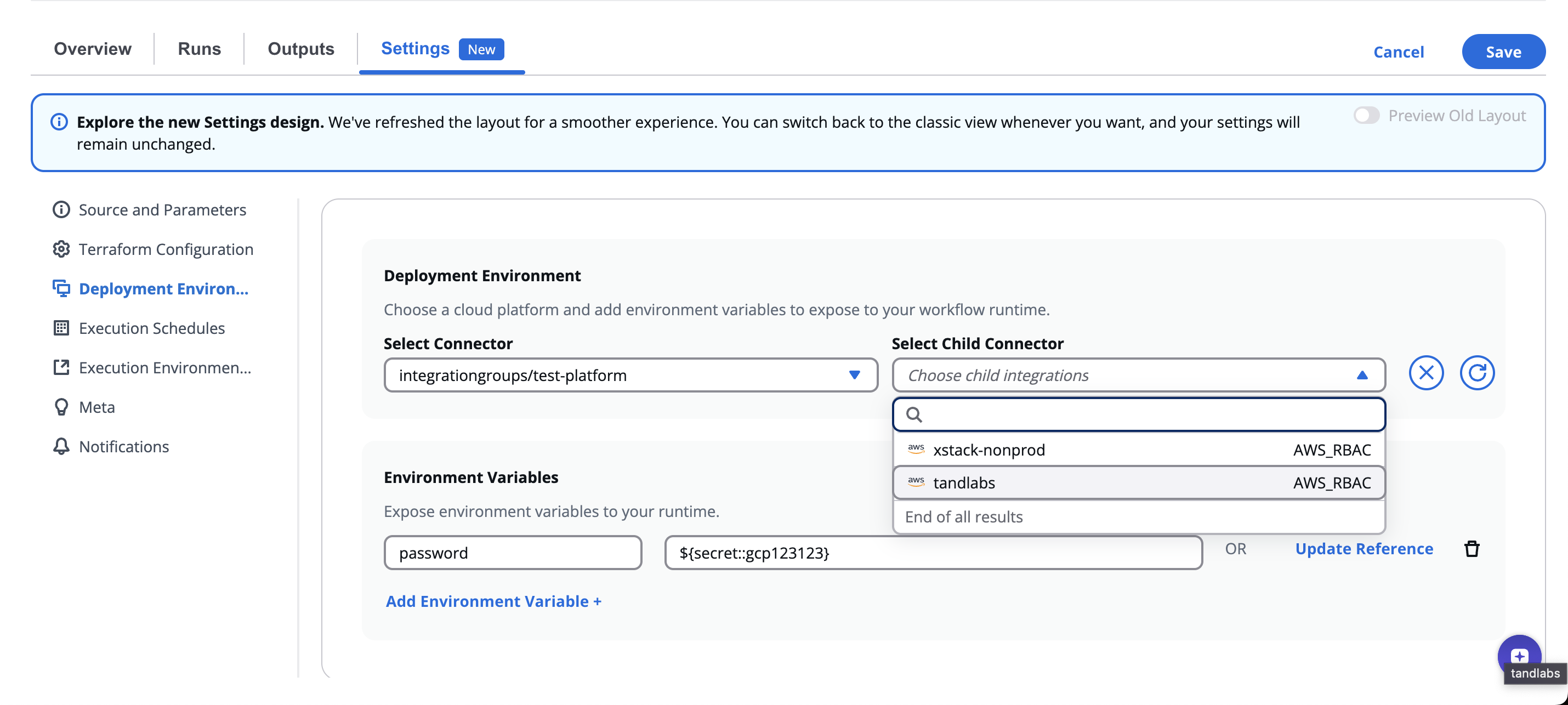

3.2 Select Connector

The Connector represents the cloud or infrastructure integration your workflow uses for deployment.

Field	Description
Select Connector	Choose the cloud or infrastructure connector from your organization’s integrations (e.g., AWS, Azure, GCP, VMware, or custom integration) or a connector
Select Child Connector	(Optional) Choose a specific account, sub-connector, or environment under the parent connector — such as a specific AWS account or subscription.

When a connector is selected, it’s displayed as:

integrationgroups/<connector-id>

and the connection status is shown (e.g., ✅ Connected or 🔴 Disconnected).

⚙️ The selected connector determines the permissions and APIs accessible to your workflow during execution.

Example: Selecting an AWS connector allows Terraform or Ansible steps to provision or configure AWS resources.

---

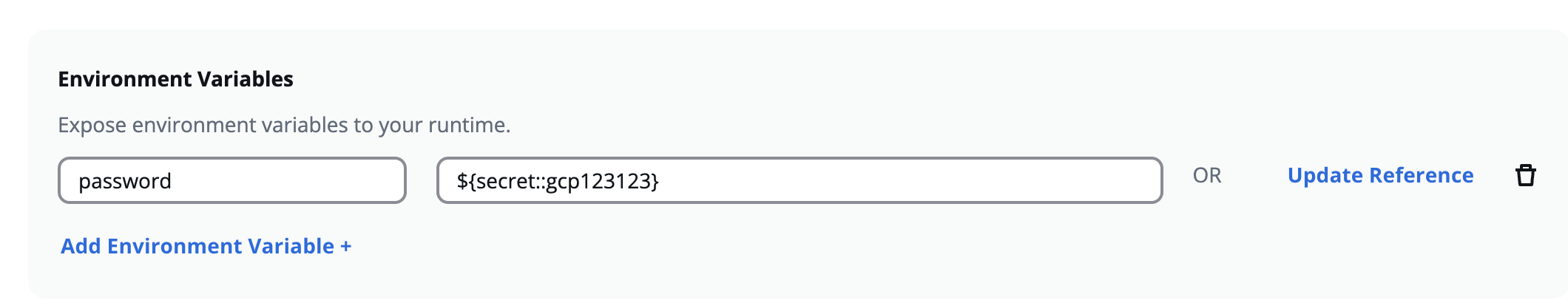

3.3 Environment Variables

Environment Variables expose custom configuration or runtime data to your workflow environment.

Each variable is defined by a Key and Value, which are passed to the underlying runtime container.

Field	Description
Key	Name of the environment variable (e.g., AWS_REGION, DEPLOYMENT_ENV).
Value	Static or dynamic value assigned to the variable.
Reference Value	Link this variable to another workflow’s output or a stored secret.
Add Environment Variable +	Add multiple variables for flexible configuration.

You can add, edit, or delete environment variables at any time.

💡 Example:

• Key: APP_ENV → Value: production
• Key: TF_LOG → Value: INFO
• Key: AWS_DEFAULT_REGION → Value: us-east-1

StackGuardian Environment Variables

This list details the environment variables specific to StackGuardian, necessary for setting up and executing tasks.

Variable Name	Description
SG_VCS_AUTH_CREDS	VCS authentication credentials.
SG_ORG_ID	Organization identifier in StackGuardian.
SG_WORKFLOW_GROUP_ID	Workflow group identifier within StackGuardian.
SG_WORKFLOW_ID	Identifier for the current StackGuardian workflow.
SG_WORKFLOW_RUN_ID	Current workflow run identifier.
SG_STACK_ID	Stack identifier within the workflow.
SG_WORKFLOW_STEP_TEMPLATE_ID	Workflow step template identifier.
SG_EXECUTOR_USER	Username executing the workflow.
SG_MOUNTED_IAC_SOURCE_CODE_DIR	Mounted IAC source code directory path.
SG_VCS_WORKING_DIRECTORY	VCS repository working directory.
SG_VCS_REPO_URL	VCS repository URL.
SG_VCS_REPO_NAME	Name of the VCS repository.
SG_VCS_REPO_REF	VCS repository reference (branch, tag, commit).
SG_MOUNTED_WORKSPACE_ROOT_DIR	Mounted workspace root directory path.
SG_MOUNTED_ARTIFACTS_DIR	Mounted artifacts directory path.
SG_BASE64_POLICIES	Base64-encoded policy objects associated with the workflow step.
SG_BASE64_WORKFLOW_STEP_INPUT_VARIABLES	Base64-encoded workflow step input variables.
SG_BASE64_IAC_INPUT_VARIABLES	Base64-encoded IaC input variables.

Example of some variables values format:

Variable Name	Value
SG_ORG_ID	/orgs/organization_name
SG_WORKFLOW_GROUP_ID	/wfgrps/workflow_group
SG_WORKFLOW_ID	/wfgrps/workflow_group/wfs/workflow_id
SG_WORKFLOW_RUN_ID	/wfgrps/workflow_group/wfs/workflow_id/wfruns/run_id
SG_WORKFLOW_STEP_TEMPLATE_ID	/organization_name/template_name:template_revision
SG_EXECUTOR_USER	user@example.com

---

3.4 Referencing Values

When setting environment variables, you can choose between manual values or references.

Selecting Reference Value opens the Create Reference dialog, allowing you to link this variable to data from other workflows or secure secrets.

Create Reference Dialog

Field	Description
Referencing Type	Choose between: - Workflow Output: Use outputs from previously executed workflows. - Secret: Fetch a stored vault secret (e.g., API key, password).
Workflow	Select the workflow whose output you want to reference.
Output Key	Choose a specific output key from that workflow.

Once configured, the referenced value will dynamically resolve at runtime.

🔒 This mechanism allows for secure and modular environment setup, without exposing sensitive data directly in your workflow configuration.

Example Use Case:

• A “Provision Infrastructure” workflow exposes an output vpc_id.
• A “Deploy Application” workflow references that vpc_id output dynamically using Workflow Output.
• Secrets such as access tokens or credentials can be securely injected via Secret references from your vault.

For more detailed instructions on creating references, refer to the Reference Variables documentation.

---

3.5 Referencing StackGuardian Environment Variables

The StackGuardian Environment Variables can be utilized in your caller code during workflow execution. This functionality enables you to dynamically associate your executing code with the StackGuardian Environment based on the information supplied by the workflow. If necessary, you may reference any StackGuardian Environment Variables using a custom variable from the Deployment Environment.

For instance, if you wish to incorporate the StackGuardian Workflow ID in your caller code, you can access the SG_WORKFLOW_ID environment variable. This provides you with the Workflow ID from the StackGuardian runtime for your use.

Furthermore, if you intend to supply StackGuardian Environment Variables to define specific Terraform or OpenTofu variables, you can do so in the following manner:

3.6 Connector Health & Refresh

When a connector becomes Disconnected, you’ll see a red status indicator.

To fix this:

• Click the refresh icon (↻) to reconnect the integration.
• If the issue persists, verify credentials in the organization’s Integrations → Connectors section.

Maintaining healthy connectors ensures smooth execution of workflows and prevents runtime authentication errors.

---
